Center Fire

160 grams of charcoal boils and simmers 5 liters/CF04 Stove
Lanny Henson www.lanny.us July 2, 2006

The CF04 Stove boiled and simmered 5 liters using only 160gr of charcoal and wood.

After several modifications to 4 different prototypes, it only took 150 gr of lump charcoal with 11% moisture and 10gr of wood to boil 5 liters of 83 degF/28.3 degC water in 45 min. That is 32 grams per liter to boil and simmer. At 1 hour after boiling the water was still simmering at 100 degC and after 2 hours the water was 205degF/96 degC. At this point I shut the air control and capped the pot module to stop the airflow and retain heat.

At 3 hours the water temp was 190 degF/87.8 degC and was 178 degF/ 81 degC at 4 hours.

Center Fire Stove 01 Cooking Test
Lanny Henson, June 12, 2006

In the last cooking test, the Center Fire Stove 01 needed only 750
grams/1.65 lb of pine chips to cook 8 pounds/3.63 kilograms dry weight of pintos. That is 14 liters of volume with water or 104 servings-35 gr/ 1/2 cup cooked volume (1/4 cup dry weight) servings.

Lanny Henson June 4, 2006

This modular stove is built from used metal containers.

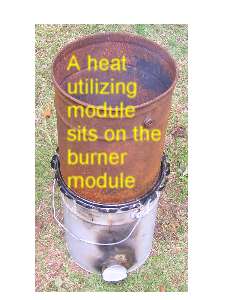

It has a center fire burner module, a sunken 8-liter pot module, and an insulated/ chip drying top cap.
The burner and is made from an institutional food can. It takes all the ware and stress from the fire protecting the rest of the stove body.They are easy to build and can act as fuel cartridges to store fuel for quick and easy use.
The burner module, under development, adds secondary combustion air to the top of the burner.

Lanny Henson's Center Fire Stove 01

Dung Berry Fireballs
Lanny Henson, October 30, 2006

Lanny Henson May 27, 2006
www.lanny.us

Henson Center fire, simple tin can wood gas burner cartridge module.

Lanny Henson, May 26, 2006
www.lanny.us

Center fired cartridge burner modules for wood and charcoal.

Burning charcoal- UMC-CH1 Charcoal Burner Module
Lanny Henson May 13 2006
